Specification

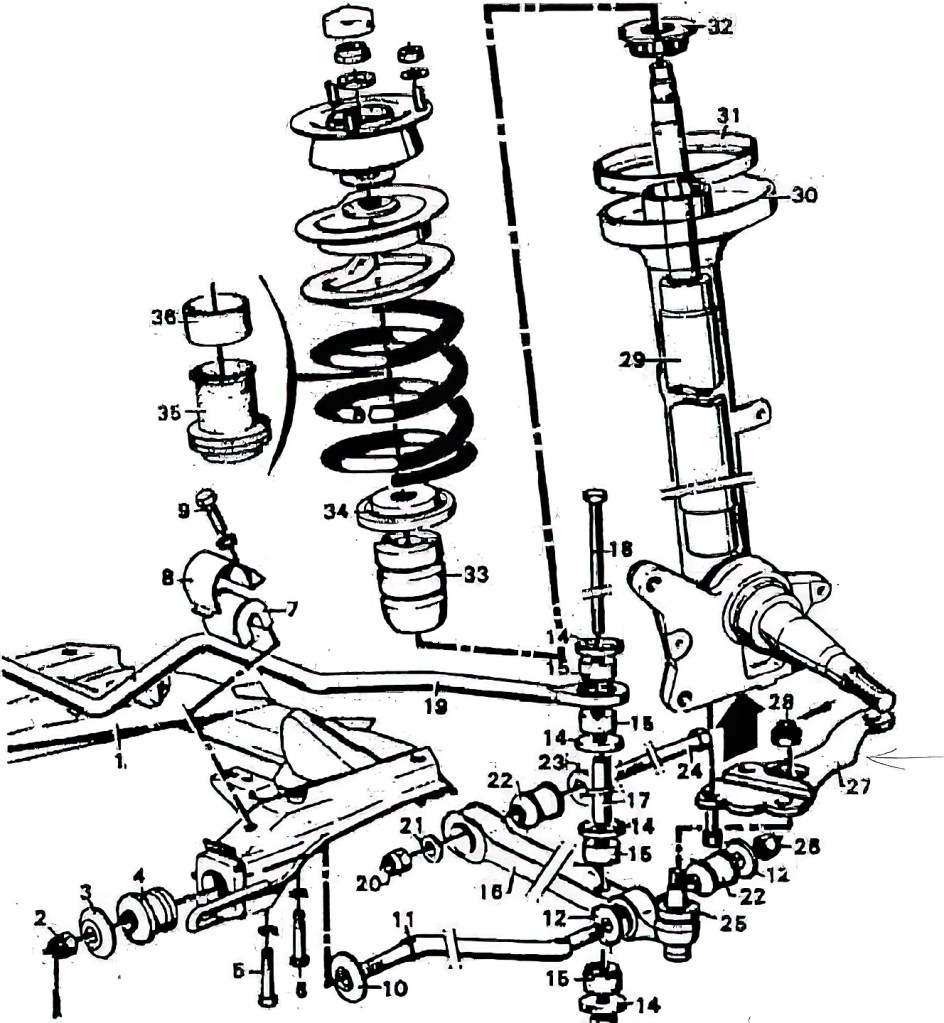

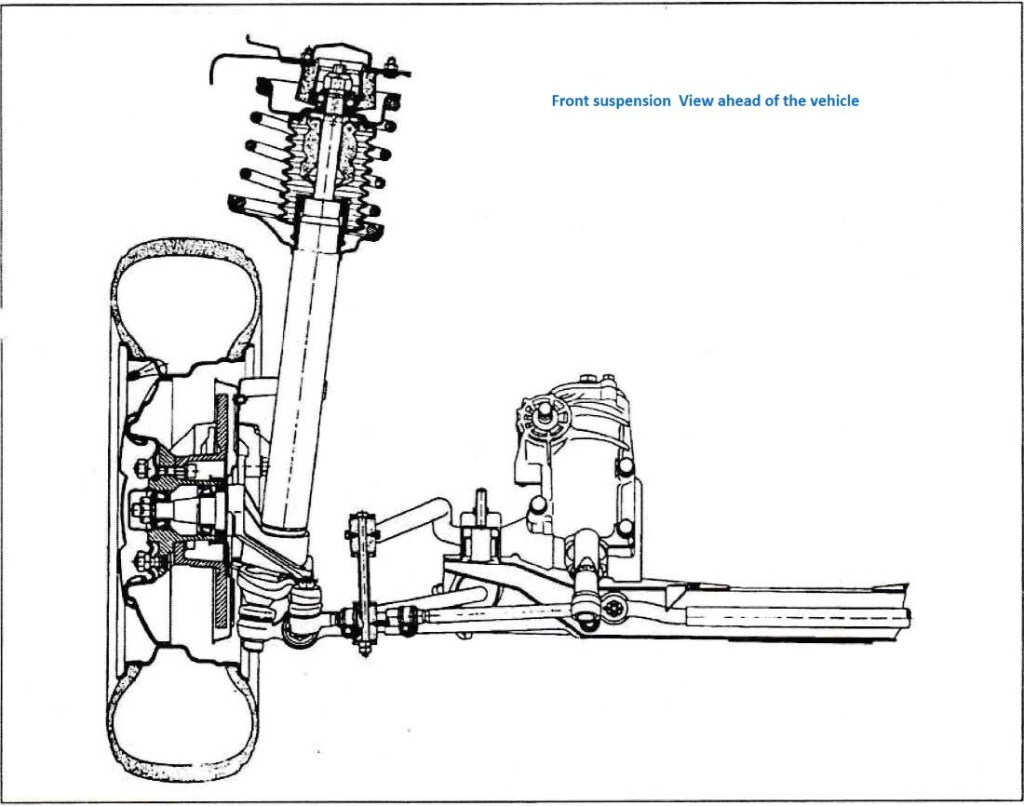

The front suspension is independent, "swinging candle" type, with hydraulic shock-absorbing struts installed with an inclination towards the rear of the vehicle.
With helical un-centered coil springs, lower wishbones with braces and anti-roll bar.
The telescopic strut is equipped with a coil spring, a rubber compression buffer and an upper strut support.
The upper support is attached to the mudguard of the body.
Telescopic stoic rests on the ball joint suspension arm.

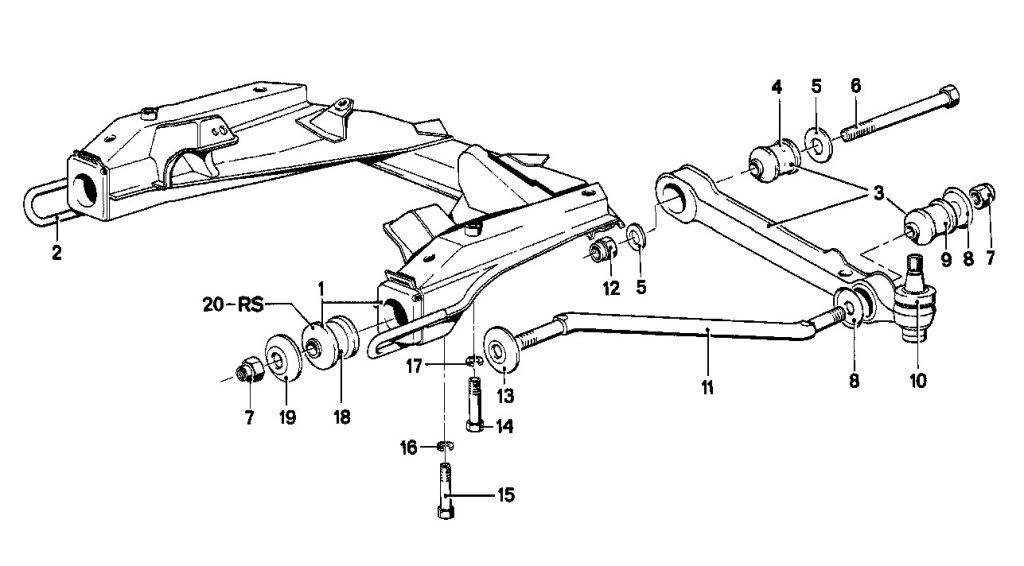

The anti-roll bar is a rod, the knees of which are connected to the wishbones through the rods with rubber-metal hinges.
The middle part of the rod fastened to the beam front suspension bracket with rubber cushions.
Wheel travel, мм
- up: 94;
- down: 105.

Specifications	Car Models	Car Models
	«518», «520» и «520I»	«525» и «528»*
Length in the free state, мм	342	338
The diameter of the wire, мм	13	13,5
The outer diameter of the spring, мм	164+1,3	164,5+1,3
Spring step in free state, мм	76,25	75,10
Marking * and spring force, кгс
– with red index	326-338	372-381
– with white index	329-351	382-392
– with green index	352-364	393-402
